Pronađeno zapisa: 3

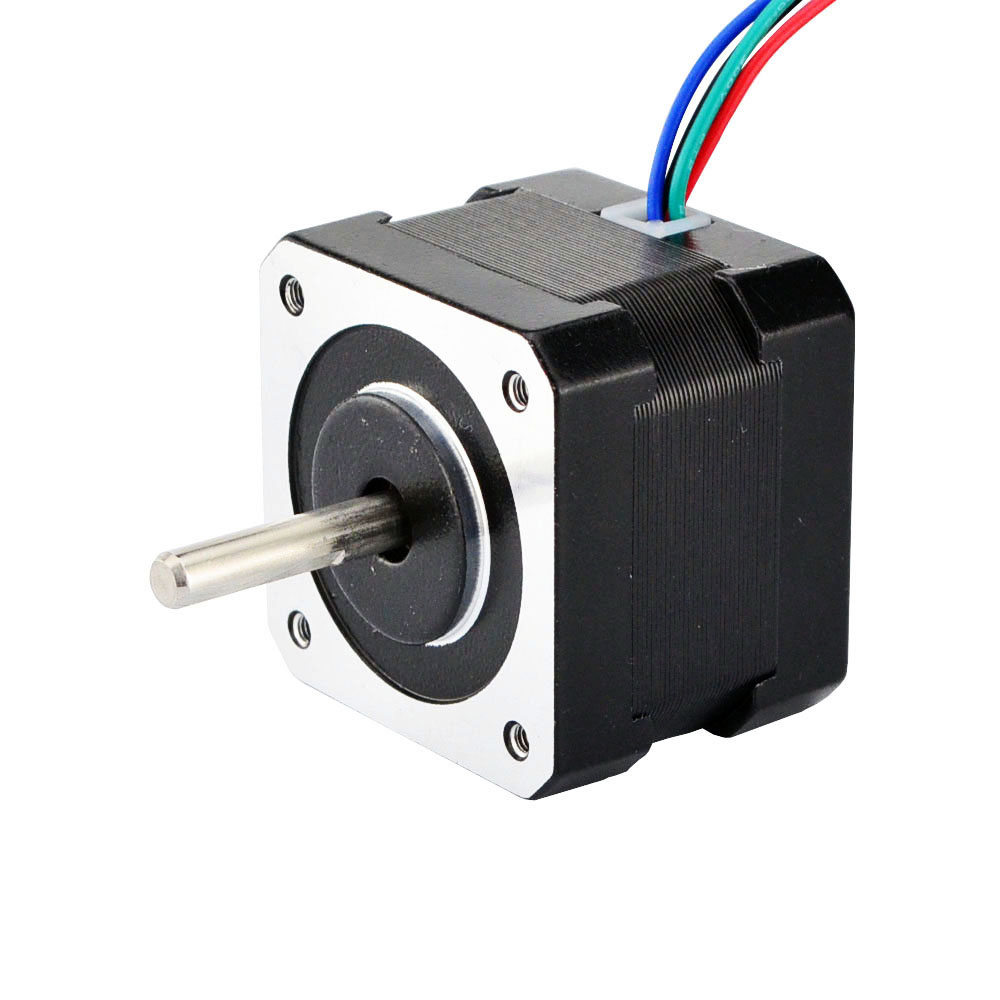

Stepper Nema 17 Bipolar 1.8deg 22Ncm
Preporučena cijena:
od 251,98kn+PDV (314,98kn)
DOSTUPNOST:
Dostava: HP Express (35,00kn)
Pošaljite upit za proizvod

Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 22Ncm
Rated Current/phase: 1.33A
Voltage: 2.8V
Phase Resistance: 2.1ohms
Inductance: 2.5mH ± 20%(1KHz)
Frame Size: 42 x 42 x 33mm
Shaft: Φ5mm x 24mm

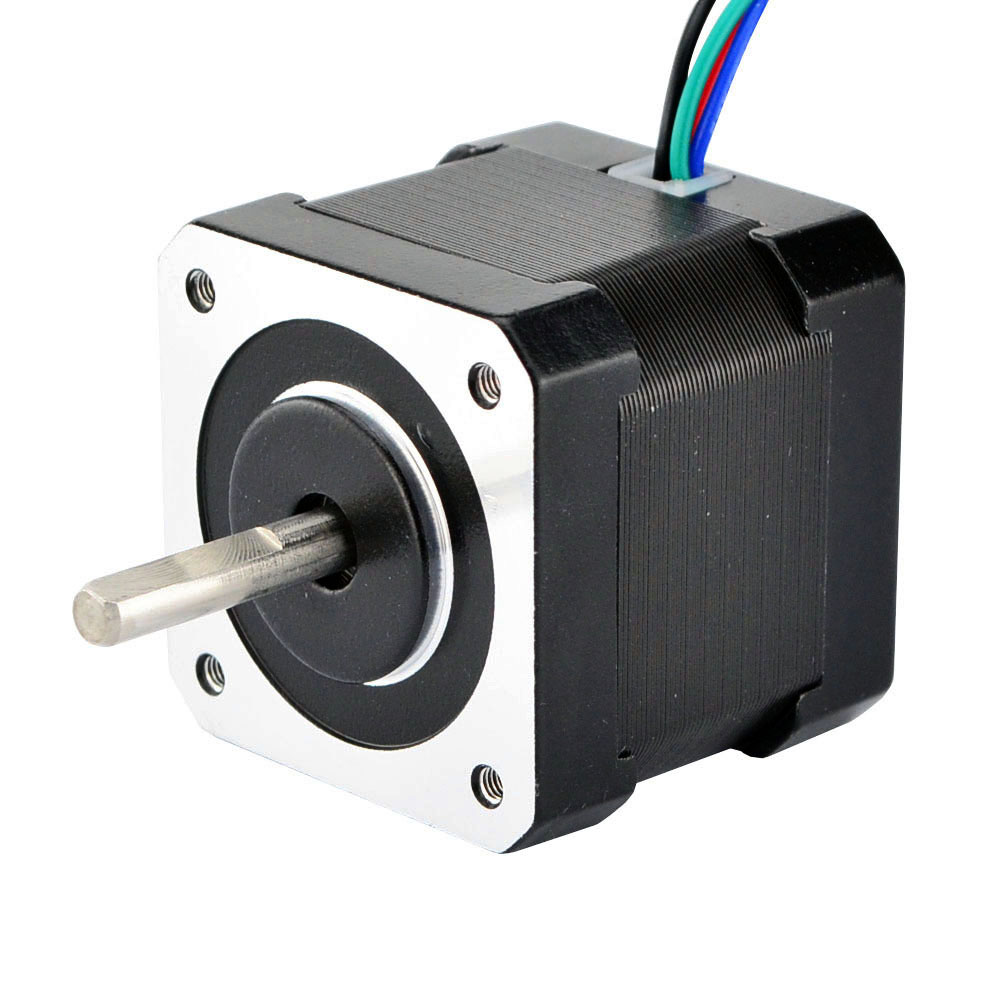

Stepper Nema 17 Bipolar 1.8deg 36Ncm
Preporučena cijena:
od 261,23kn+PDV (326,54kn)
DOSTUPNOST:
Dostava: HP Express (35,00kn)
Pošaljite upit za proizvod

Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 36Ncm
Rated Current/phase: 0.85A
Voltage: 5.4V
Phase Resistance: 6.3ohms
Inductance: 10mH ± 20%(1KHz)
Frame Size: 42 x 42 x 39mm
Shaft: Φ5mm x 24mm

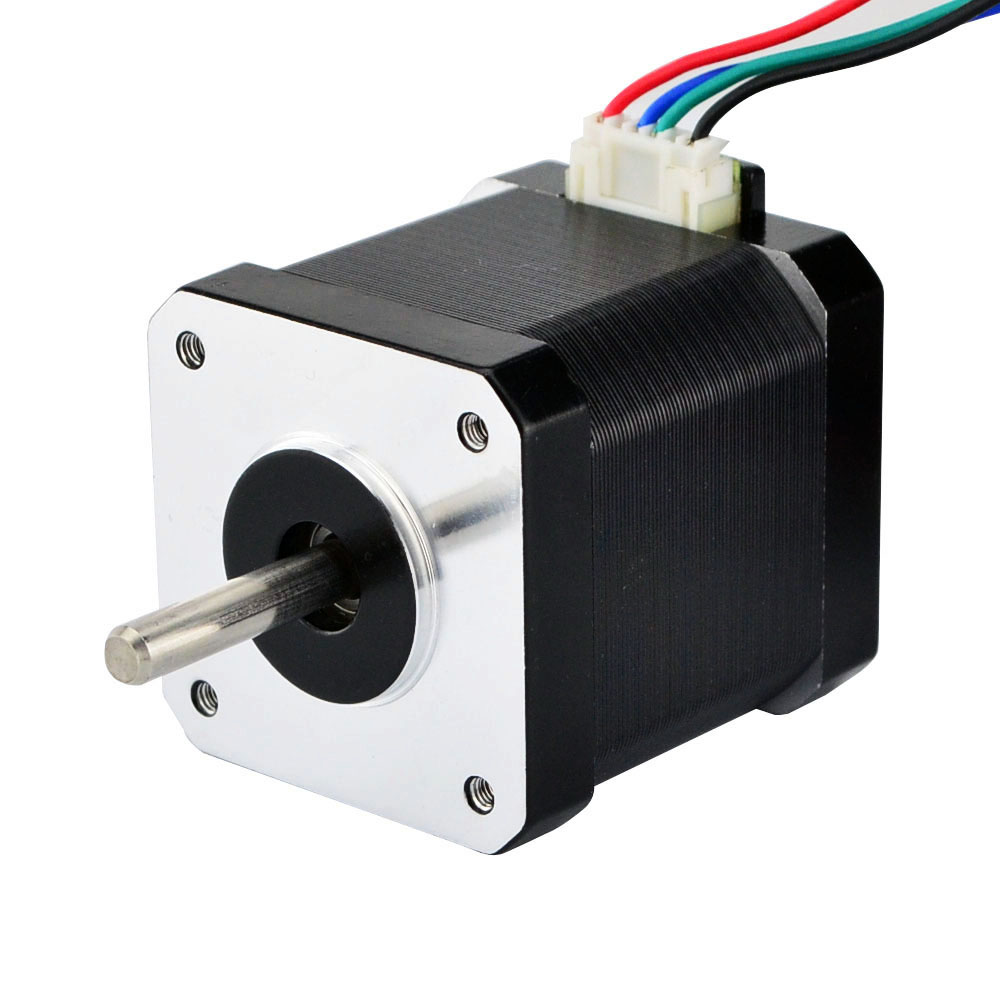

Stepper Nema 17 Bipolar 1.8deg 45Ncm
Preporučena cijena:
od 261,23kn+PDV (326,54kn)
DOSTUPNOST:
Dostava: HP Express (35,00kn)
Pošaljite upit za proizvod

Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 45Ncm
Rated Current/phase: 1.68A
Voltage: 2.8V
Phase Resistance: 1.65ohms
Inductance: 2.8mH ± 20%(1KHz)
Frame Size: 42 x 42 x 48mm
Shaft: Φ5mm x 24mm
